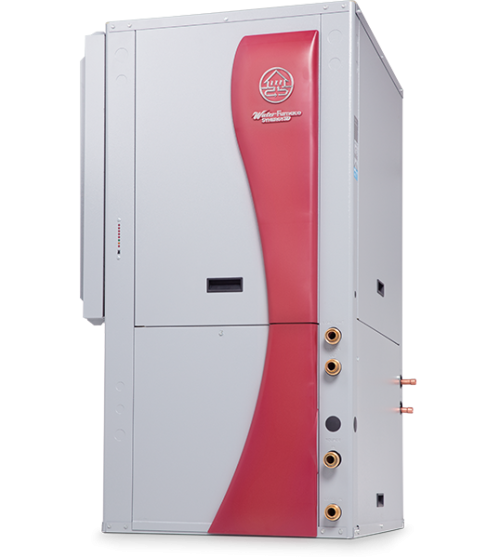

WaterFurnace 5 Series 500R11 Indoor Split Geothermal Heat Pump
Brochure
The WaterFurnace 5 Series 500R11 indoor-split geothermal heat pump delivers high-efficiency comfort (up to 4.6 COP / 27.8 EER), flexible installation, smart Aurora controls, and zoning options. Available in Canada from West Coast Geothermal, your authorized dealer.
- Dual Capacity Scroll Compressor — High-efficiency performance with quiet operation
- Efficiency — Up to 4.6 COP and 27.8 EER :contentReference[oaicite:1]{index=1}
- R‑454B Low‑GWP Refrigerant — Better for the environment :contentReference[oaicite:2]{index=2}
- Variable-Speed ECM Blower — Smart airflow when matched with W5B air handler :contentReference[oaicite:3]{index=3}
- Aurora Advanced Controls — Includes energy monitoring and onboard diagnostics :contentReference[oaicite:4]{index=4}
- Symphony Smart-Home Compatible — Connects to cloud platform for remote control :contentReference[oaicite:5]{index=5}
- Flexible Cabinet Configuration — Vertical or horizontal; left/right return :contentReference[oaicite:6]{index=6}
- Hot-Water Assist Option — Free hot water when configured with internal pump :contentReference[oaicite:7]{index=7}
- Auxiliary Heat Support — Requires air handler, compatible with dual-fuel setups :contentReference[oaicite:8]{index=8}
- Zone Control with IntelliZone®2 — Supports up to 4 zones for personalized comfort :contentReference[oaicite:9]{index=9}
Description
The WaterFurnace 5 Series 500R11 is a versatile indoor-split geothermal heat pump offering high-efficiency comfort with dual-capacity options for 2 to 6 ton models. Featuring R‑454B refrigerant, Aurora controls, and optional IntelliZone®2 zoning, it’s ideal for retrofit or whole-home installations. West Coast Geothermal is your authorized Canadian dealer, providing expert sales, installation, and support across British Columbia.
| Spec Category | Details |
|---|---|
| Model | 500R11 |
| Series | 5 Series |
| Sizes | 2–6 Ton (5 sizes) |
| Efficiency | Up to 4.6 COP / 27.8 EER |
| Refrigerant | R‑454B (Low-GWP) |
| Compressor | High‑efficiency dual-capacity scroll |
| Blower | Variable‑Speed ECM (with W5B air handler) |
| Cabinet Configuration | Vertical or Horizontal; left/right return |
| Stages | 3 Heat* / 2 Cool |
| Controls | Aurora Advanced + Symphony compatible |
| Air Coil | All‑Aluminum PinnaCoil® (with air handler) |
| Hot Water Generation | Optional internal-mount pump |
| Auxiliary Heat | Yes (with air handler; dual-fuel capable) |
| Zone Control | IntelliZone®2 (up to 4 zones) |
| ENERGY STAR® Certified | Yes, all sizes with air handler or A‑coil |
*3 Heat / 2 Cool — auxiliary heat where applicable.
