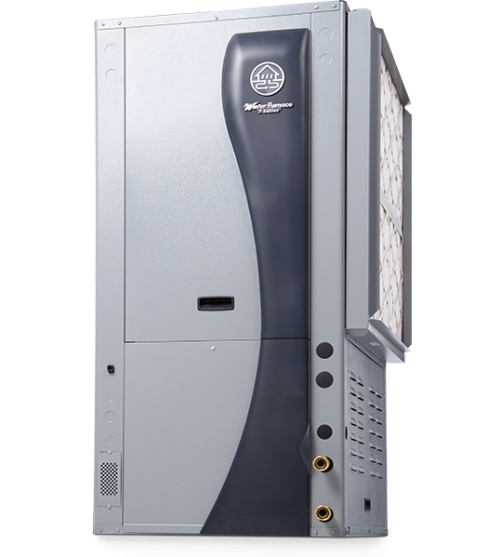

7 Series® 700R11 Indoor Split Geothermal Heat Pump
The WaterFurnace 7 Series 700R11 is a premium indoor split geothermal heat pump—variable-capacity, ENERGY STAR® rated, R‑454B refrigerant, W7B air handler compatible, plus optional hot-water assist. Available via West Coast Geothermal, authorized dealer.
- Variable-capacity scroll compressor — Adjusts capacity from 20–100% for ultimate comfort and efficiency :contentReference[oaicite:1]{index=1}
- High performance — Delivers up to 40.8 EER / 5.4 COP with W7B air handler :contentReference[oaicite:2]{index=2}
- R‑454B low‑GWP refrigerant — Environmentally responsible :contentReference[oaicite:3]{index=3}
- Variable-speed ECM blower — Paired with W7B air handler for quiet, efficient airflow :contentReference[oaicite:4]{index=4}
- Aurora variable-speed controller — Built-in energy, refrigeration, and performance monitoring :contentReference[oaicite:5]{index=5}
- Symphony platform compatible — Smart home integration, remote monitoring & alerts :contentReference[oaicite:6]{index=6}
- Compact cabinet design — Ideal for tight utility spaces :contentReference[oaicite:7]{index=7}
- Hot-water assist option — Factory-installed pump for efficient domestic hot water :contentReference[oaicite:8]{index=8}
- Six-zone IntelliZone² support — Zoned comfort using W7B air handler :contentReference[oaicite:9]{index=9}
- ENERGY STAR® certified — Efficiency qualified across all sizes when paired with W7B :contentReference[oaicite:10]{index=10}
Description

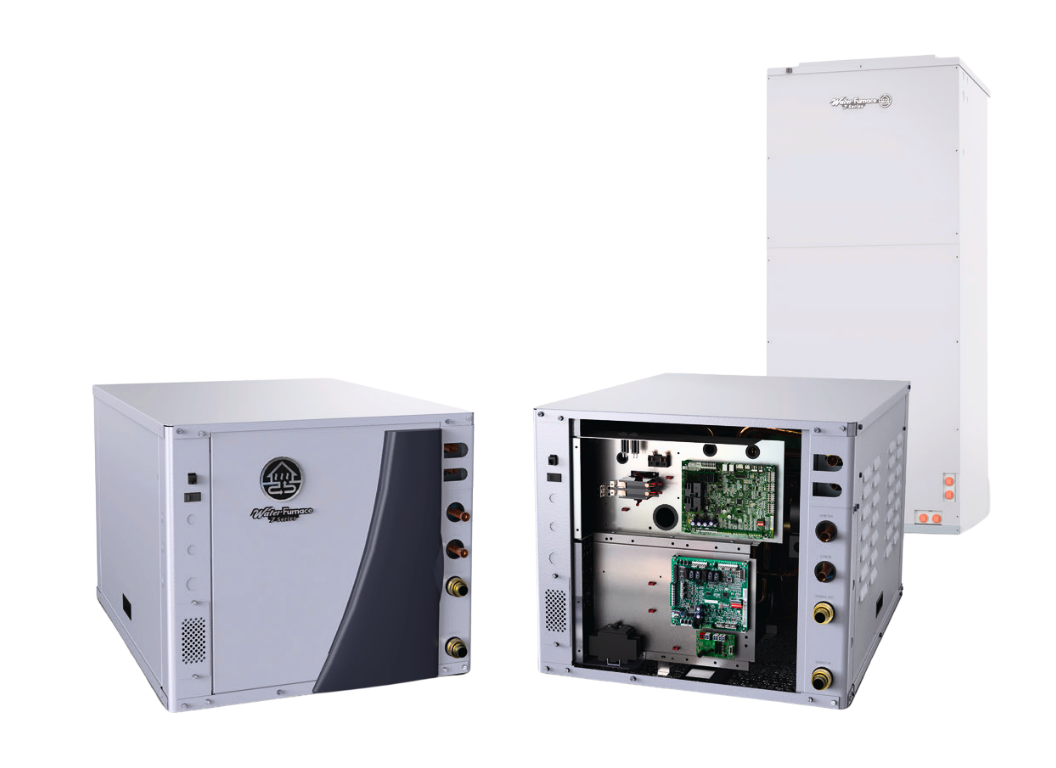

The WaterFurnace 7 Series 700R11 is a top-of-the-line variable-capacity indoor split geothermal heat pump, offering unmatched efficiency (up to 40.8 EER / 5.4 COP) and whisper-quiet performance. Designed for flexible installations with a remote W7B air handler, it delivers superior heating, cooling, and optional hot-water assist with intelligent Aurora Controls and Symphony connectivity. Installed by West Coast Geothermal, your authorized Canadian dealer, and backed by expert support throughout British Columbia and Canada.
| Spec Category | Details |
|---|---|
| Model | 700R11 |
| Series | 7 Series |
| Sizes | 2½ to 4 T (3 sizes: 033, 042, 050) |
| Efficiency | Up to 40.8 EER / 5.4 COP |
| Refrigerant | R‑454B (Low GWP) |
| Compressor | Variable-capacity scroll |
| Blower | Variable-speed ECM (W7B air handler) |
| Cabinet | Compact indoor split |
| Stages | 3 Heat* / 2 Cool |
| Controls | Aurora variable-speed; energy/refrigeration monitoring; Symphony compatible |
| Air Coil | All‑Aluminum PinnaCoil® (via W7B) |
| Hot Water Generation | Optional internal mount pump |
| Auxiliary Heat | Yes, with W7B air handler |
| Zone Control | IntelliZone®2 (up to 6 zones) |
| ENERGY STAR® Certified | Yes, all sizes with W7B air handler |
*3 heat / 2 cool — auxiliary heat where applicable. Efficiency per AHRI 13256-1/2 ratings.
